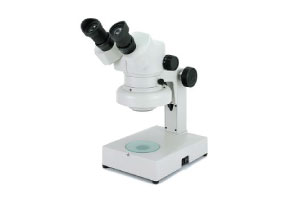

DSZ-44BRT-IFH

 Stand type  T (Regular type)
 Incident light  Fluorescent Lamp 9W
 Transmitted light  Tungsten Lamp 230V 20W
 Stage plate  Frosted glass plate (Ø = 80mm)
 Frosted blue filer (Ø = 37mm)
 Base  160mm x 219mm
 Height  352mm
 Net weight  4.4 kg
Transmitted & incident lights are built in the stand. The incident light is composed of 9W fluorescent lamp having a long life and a low temperature.

The DSZ-44 series features a zoom magnification of 10x to 44x (zoom ratio 4.4:1) with standard eye-pieces 1Ox. A wide range of magnification from 2.5x to 140.8x is available with optional lenses. No. DSZ-44BRT-IFH
Models DSZ-44BRT-IFH
Magnification
(field of view)		 10x to 44x
(field of view : 23mm to 5.2mm)
Objective Lense 1.0x to 4.4x (zoom ratio : 4.4:1)
Eyepieces Wide Field 10x (DSW10x) (field number : 23)
Optical Body 360° rotatable binocular type, 45° inclined eyepiece tube
Working Distance 90mm
Interpupillary
Distance		 52mm to 75mm
Diopter Adjustment +5.6D -7.2D on both eyepiece tubes
Accessories Rubber eyeguard, Tension control pin, Dust cover, Spare bulb (Tungsten Lamp for stand type T only)
