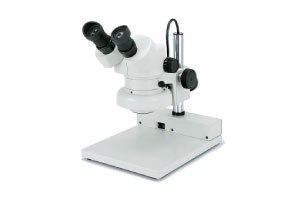

DSZ-44PFM-IFH

 Stand type  PF (Pole type (250mm))
 Incident light  Fluorescent Lamp 9W
 Transmitted light  Nil
 Stage plate  Nil
 Base  220mm x 284mm
 Height  327mm
 Net weight  5.4 kg
Large stage is equipped for convenience of work. A long life and low temperature 9W fluorescent lamp is used for the built-in incident light.

DSZ-44 series features a zoom magnification of 10x to 44x (zoom ratio 4.4:1) with standard eye-pieces 10x. A wide range of magnification from 2.5x to 140.8x is available with optional lenses. No. DSZ-44PFM-IFH
Models DSZ-44PFM-IFH
Magnification
(field of view)
10x to 44x
(field of view : 23mm to 5.2mm)
Objective Lense 1.0x to 4.4x (zoom ratio : 4.4:1)
Eyepieces Wide Field 10x (DSW10x) (field number : 23)
Optical Body 360° rotatable binocular type, 45° inclined eyepiece tube
Working Distance 90mm
Interpupillary
Distance
52mm to 75mm
Diopter Adjustment +5.6D -7.2D on both eyepiece tubes
Accessories Rubber eyeguard, Tension control pin, Dust cover, Spare blub (Tungsten Lamp for stand type T only)
