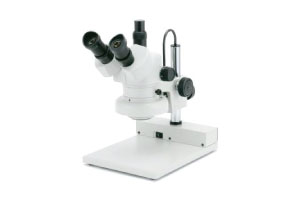

DSZT-44PFM-IFH

 Stand type  PF (Pole type (250mm))
 Incident light  Fluorescent Lamp 9W
 Transmitted light  Nil
 Stage plate  Nil
 Base  220mm x 284mm
 Height  353mm
 Net weight  5.6 kg
Large stage is equipped for convenience of work. A long life and low temperature 9W fluorescent lamp is used for the built-in incident light.

DSZT-44 series is provided with trinocular body for TV microscopy and photomicrography. It features the same zoom magnification of 10x to 44x as the DSZ-44 series. No. DSZT-44PFM-IFH
Models DSZT-44PFM-IFH
Magnification
(field of view)
10x to 44x
(field of view : 23mm to 5.2mm)
Objective Lense 1.0x to 4.4x (zoom ratio : 4.4:1)
Eyepieces Wide Field 10x (DSW10x) (field number : 23)
Optical Body 360° rotatable trinocular type, 45° inclined eyepiece tube
Working Distance 90mm
Interpupillary
Distance
52mm to 75mm
Diopter Adjustment ±5.6D -7.2D on both eyepiece tubes & ±8D on verticle tube
Accessories Rubber eyeguard, Tension control pin, Dust cover, Spare bulb (Tungsten Lamp for stand type T only)
